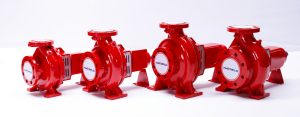

Ameriflo Flex-Coupled End Suction Pumps Series 5010 ES
FEATURES & BENEFITS
The Series 5010 ES End Suction product line is a third party certified, fire protection pump in a flex-coupled orientation with a centerline discharge. This product can be electrically or Diesel engine driven and is a perfect fit for the smaller flow applications found throughout the industry.
UL listed and FM approval Certified Performance:
Flows: 50 GPM to 2,000 GPM [11 M3/HR to 455 M3/HR]
Heads: 40 PSI to 220 PSI [2.75 BAR to 15.2 BAR]
Speeds: 3550 RPM, 2950 RPM
The 5010 Series ES End Suction product line has the following specifiable features and benefits:
- Ductile iron casing and rear cover with 250 PSI pressure ratings
- Cast integral casing foot that provides casing support when the back pull out assembly is removed
- Centerline discharge minimizes residual piping strain and is self venting
- Cast integral vortex suppressor located at suction inlet designed to minimize pre-rotation of fluid prior to entering the impeller eye
- 250# RF suction & 250# RF discharge flanges
- Investment cast, 304 stainless steel impellers
- 4340 quenched and tempered high chrome steel shafting
- 304 stainless steel shaft sleeve, 304 stainless steel gland and 304 stainless steel lantern ring
- 304 stainless steel flush lines with 304 stainless steel ball valves
- 7300 series angular contact bearing at the inboard and outboard locations
- Modular power frame assembly minimizes number of parts needed
- Full optional metallurgy support for sea water applications (all bronze, all 2205 & all 2507 super duplex stainless steel)
- Milled and drilled pad locations under pump and driver
- Alignment jackscrews located under the motor (Electric) or pump (Diesel) to aid in field alignment
- Base leveling jackscrews to allow for a quick and efficient leveling of the base to the concrete pad in the field
- Two grounding lugs located on the base to safely ground the entire assembly
- Integral lifting lugs on the base to safely lift and transport the entire base assembly
