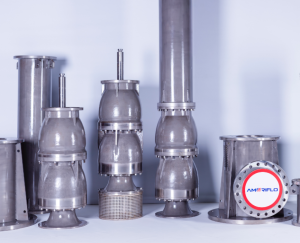

Ameriflo Open Lineshaft Vertical Turbine Pumps 4810 VT
FEATURES & BENEFITS
The Series 4810 VT Vertical Turbine product line is a heavy duty vertical turbine designed for the commercial, industrial & municipal markets. The VT Vertical Turbine can be supplied in a single or multistage orientation with a wide variety of overall length options. Pumps can be supplied in an overall length specified by the client. Optional material, packing or mechanical seal & thrust pot options are available upon request.
Performance:
Flows: To 28,000 GPM [6,359 M3/HR]
Heads: To 980 FEET [300 M]
Speeds: 3550 RPM, 2950 RPM, 1760 RPM, 1480 RPM, 1180 RPM, 980 RPM, 740 RPM, 725 RPM, 590 RPM, 490 RPM, 380 RPM
Sizes: 5AMC -> 42AMC Bowls
The 4810 Series VT Vertical Turbine product line has the following specifiable features and benefits:
- Optional basket strainers in a variety of optional metallurgy

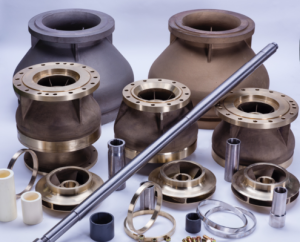

- Class 30 cast iron bowls with vitreous porcelain glass lining
- Flanged bowl construction for easy assembly and disassembly
- Investment cast, 304 stainless steel impellers
- 416 stainless steel shafting
- 304 stainless steel bolting
- Heavy duty bronze bowl bearings between each stage and under each bearing
- Threaded column assemblies (4″ through 12″) with 420 stainless steel line shaft with flanged construction as an option (4″ through 48″)
- Open or enclosed lineshaft construction available
- Cast iron discharge heads (4″ through 16″)
- Optional fabricated steel discharge heads (4″ through 48″) with heavy duty double bearing stuffing box assembly
- Ductile iron deepset heads (8″ through 12″)
- Stuffing box features 304 stainless steel shaft sleeves, 304 stainless steel gland & 304 stainless steel lantern ring
- Options for a wide variety of component & cartridge mechanical seals
- Full optional metallurgy support for seat water applications (all bronze, all 316SS, all 2205 & 2507 super duplex stainless steel)
Ameriflo also supply other series of vertical tubine pump as:
+4810 Can VT – Open Lineshaft Vertical Turbine Pumps
+ 4810 SVT – Submersible Vertical Turbine Pumps
+ 4810 VT – Enclosed Lineshaft Vertical Turbine Pumps
+ 4820 MF – Mixed Flow Pumps
+ 4830 AF – Axial Flow Pumps
