Ameriflo Vertical Turbine Fire Pumps Series 5040
FEATURES & BENEFITS

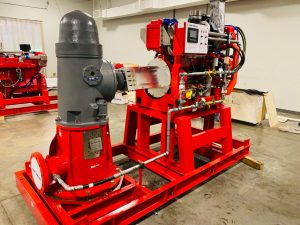

The Series 5040 VT Vertical Turbine product line is a third party certified, fire protection pump in an overall length vertical turbine assembly. This product can be electrically or Diesel engine driven and is a perfect fit for applications where a wet well is present at the job-site.
Certified Performance:
Flows: 100 GPM to 7,500 GPM [22.7 M3/HR to 1,703 M3/HR]
Heads: 40 PSI to 377 PSI [2.75 BAR to 26.0 BAR]
Speeds: 2950 RPM, 1760 RPM, 1480 RPM
The 5040 Series VT Vertical Turbine product line has the following specifiable features and benefits:
- Ductile iron bowls with double wear ring construction
- Flanged bowl construction with jackscrew threads for easy assembly and disassembly
- Hydraulically balanced, investment cast, 304 stainless steel impellers with lower and upper bowl wear rings
- 4340 quenched and tempered high chrome steel shafting
- 304 stainless steel shaft sleeves between each stage and under each bowl bearing
- 304 stainless steel basket strainer
- Heavy duty bronze bowl bearings between each stage
- Flanged column assemblies (4″, 6″, 8″, 10″, 12″, 14″, & 16″) with 420 stainless steel line shaft
- Fabricated steel discharge heads (4″, 6″, 8″, 10″, 12″, 14″, & 16″) with heavy duty double bearing stuffing box assembly
- Stuffing box features 304 stainless steel shaft sleeves, 304 stainless steel gland & 304 stainless steel lantern ring
- Full optional metallurgy support for sea water applications (all bronze, all 2205 & all 2507 super duplex stainless steel)
- Milled and drilled pad locations under pump and driver
- Alignment jackscrews located under the motor (Electric) or pump (Diesel) to aid in field alignment
- Base leveling jackscrews to allow for a quick and efficient leveling of the base to the concrete pad in the field
- Two grounding lugs located on the base to safely ground the entire assembly
- Integral lifting lugs on the base to safely lift and transport the entire base assembly
